** = Requires the purchase of#UTV-WEK (wire extension kit) Due to location of battery on RZR.
Mount designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2
- KFI: AS-50
- WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
- WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
- WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
- RAMSEY : ATV2500 / ATV3000
- SUPERWINCH : Terra25 / Terra35 / A3500 / LT2500 / LT3000 / LT4000ATV
- MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE2500 / PE3500
- CYCLE COUNTRY :Work Power 1500 and 2500 / Powermax 2500, 3500
- KEEPER CORP. TRAKKER :KT2500 / KT3000 / KT2500C / KT3000C
-
BADLAND: 2-Hole Winches (Click Here for Details)
- All 2-Hole mounted winches will require the additional purchase of the Converter Mount #100480
- BADLAND: Standard Winches (Click Here for Details)
- CHAMPION : Standard Winches (Click Here for Details)
-
CHAMPION : 2-Hole Winches (Click Here for Details)
- All 2-Hole mounted winches will require the additional purchase of the Converter Mount #100480
- SMITTYBILT :XRC 3.0 / XRC 4.0
-
XGEAR: X3000 / X4000
- 4-Hole Standard (3.00" x 4.875" bolt pattern)
-
VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Standard ONLY)
- 4-Hole Standard 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern
-
Possibly many others with the below standard mounting patterns, call to confirm.
- 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
-
2-HOLE MOUNTED WINCHES WITH A 3.10" BOLT PATTERN:
- All 2-Hole mounted winches will require the additional purchase of the Converter Mount #100480
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- QUADBOSS: RP25 / RP35
-
Traveller:1078088 / 1078302
- Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
- Requires the additional purchase of the Converter Mount #100480

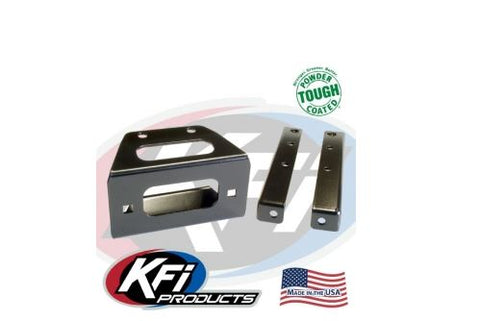

Specifications:
- 100% MADE IN USA.
- Constructed of 10 GA steel.
- Unlike all other mount competitors our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder coated black for supreme durability.
- Complete installation instructions included.
- All mounting hardware included.
- Satisfaction guaranteed.
- Roller fairlead and winch not included.
- Works with the Polaris Glacier Plow System.
