UNIVERSAL WELD-IN GUSSET KIT

SA-FMGK-U-001

27391779

  • Sale
  • $152.25


DESCRIPTION:

Beef Up Your Frame
Are you tired of bending your A-arm tabs and ripping off your shock mounts because you like to have “too much” fun? You need SuperATV’s Universal Weld-In Gusset Kit for your UTV to beef up your frame. With various washer and frame plates of different sizes, you’ll have everything you need to boost the strength of any UTV frame.

Heavy-Duty Steel
Our weld-in gussets are made from heavy-duty 3/16” thick steel to make sure your ride is ready for every jump and impact you take. It’s perfect for extreme riders who don’t pull any punches on their lifted and loaded machines. Just weld them to your mounting tabs and chassis locations where your UTV needs more strength to ride hard.

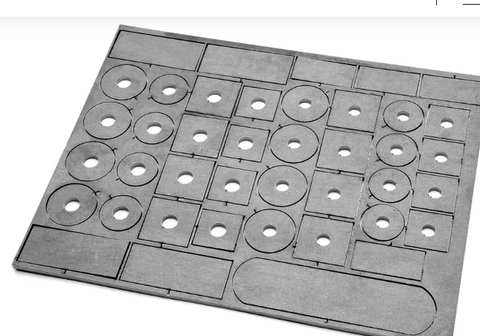

Kit Includes:
(4) 38 mm round washers for 12 mm bolts—A-arm, trailing arm, shock tab (fixes wallowed-out bolt hole)
(4) 32 mm round washers for 12 mm bolts—A-arm, trailing arm, shock tab (fixes wallowed-out bolt hole)
(4) 38 mm square washers for 12 mm bolts—A-arm, trailing arm, shock tab (fixes wallowed-out bolt hole; designed for square tube frames)
(4) 32 mm square washers for 12 mm bolts—A-arm, trailing arm, shock tab (fixes wallowed-out bolt hole; designed for square tube frames)
(4) 38 mm round washers for 10 mm bolts—A-arm, trailing arm, shock tab (fixes wallowed-out bolt hole)
(4) 32 mm round washers for 10 mm bolts—A-arm, trailing arm, shock tab (fixes wallowed-out bolt hole)
(4) 38 mm square washers for 10 mm bolts—A-arm, trailing arm, shock tab (fixes wallowed-out bolt hole; designed for square tube frames)
(4) 32 mm square washers for 10 mm bolts—A-arm, trailing arm, shock tab (fixes wallowed-out bolt hole; designed for square tube frames)
(4) 51 x 24.4 mm gusset plates—frame reinforcement
(4) 76 x 32 mm gusset plates—frame reinforcement
(1) 146 x 38 mm rounded gusset—frame reinforcement



 FITMENT:

  • Made of 3/16” heavy-duty steel
  • 10 and 12 mm washer plates are compatible with most machines
