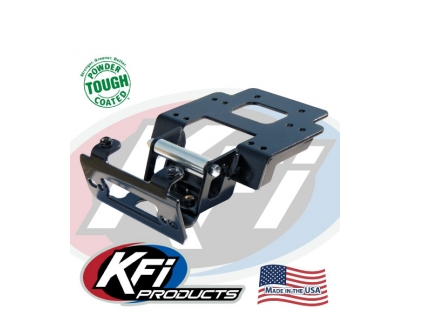

WINCH MOUNT RZR 900 11-14

  ** = Requires the purchase of#UTV-WEK (wire extension kit) Due to location of battery on the RZR.

Mount designed to work with the following winches:

• KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / AS-50
• WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
• WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
• WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
• RAMSEY : ATV2500 / ATV3000
• SUPERWINCH : Terra25 / Terra35 / A3500 / LT2500 / LT3000 / LT4000ATV
• MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE3500
• CYCLE COUNTRY :Work Power  2500 / Powermax 2500 and 3500
• BADLAND: 2-Hole Winches (Click Here for Details)
  • Will require the additional purchase of the Converter Mount #100480
• BADLAND: Standard Winches (Click Here for Details)
• CHAMPION : 2-Hole Winches (Click Here for Details)
  • Will require the additional purchase of the Converter Mount #100480
• CHAMPION : Standard Winches (Click Here for Details)
• KEEPER CORP. TRAKKER:KT2500 / KT3000 / KT2500C / KT3000C
• KEEPER CORP. TRAKKER: KT2000
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Will require the additional purchase of the Converter Mount #100480
• SMITTYBILT :XRC 2.0
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • Will require the additional purchase of the Converter Mount #100480
• SMITTYBILT :XRC 3.0 / XRC 4.0
• XGEAR:  X3000 / X4000
  • 4-Hole Standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 (Hardcore Series)
  • All with 3.00" x 4.875" bolt pattern mount-up.
• VENOM: 4500 / 5000 (Hardcore Series) Will require the additional #101065 Spacer Plate
  • All with 3.00" x 4.875" bolt pattern mount-up.
• QUADBOSS: RP25 / RP35
• Possibly many others with the below standard mounting patterns, call to confirm.
  • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
• 2-HOLE MOUNTED WINCHES WITH A 3.10" BOLT PATTERN:
  • All 2-Hole mounted winches will require the additional purchase of the Converter Mount #100480
  • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
• This mount has the Wide Bolt Pattern built in but is not recommended due to cable rub on the mount.
  • 4-Hole (3.00" x 6.60" bolt pattern with rollers that are 6.00" bolt pattern)

Specifications:

• ​​​​​​​100% MADE IN USA.
• Constructed of 3/16" steel.
• Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
• Powder coated black for supreme durability.
• Complete installation instructions included.
• All mounting hardware included.
• Satisfaction guaranteed.
• Roller fairlead and winch not included.
