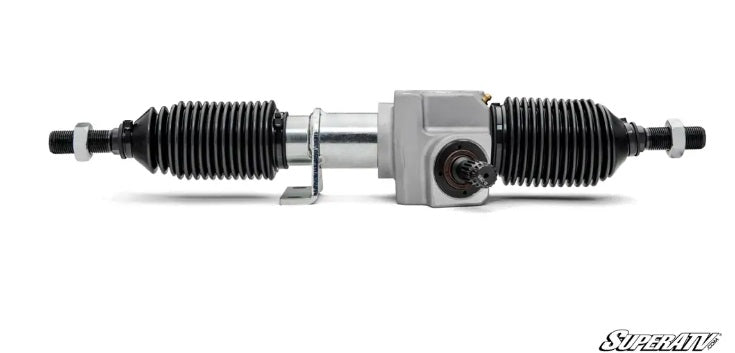

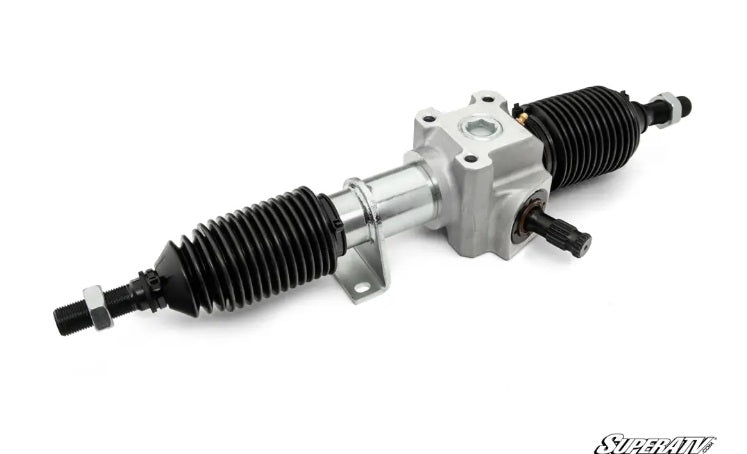

RackBoss 2.0 Is More Durable
Your Polaris General likes to throw its weight around, but keeping the beast under control wears out your steering rack. Eventually your steering becomes less responsive, and there’s nothing you can do to stop it. That’s where RackBoss 2.0 comes in. It’s built differently with our X24 Tech—a unique dual-bushing design you can’t get anywhere else. So install SuperATV’s RackBoss 2.0 Rack and Pinion on your Polaris General 1000. With it, you can run bigger tires, take on treacherous terrain, and ride with confidence everywhere you go. With 50% less wear than stock, your steering won’t get sloppy any time soon.

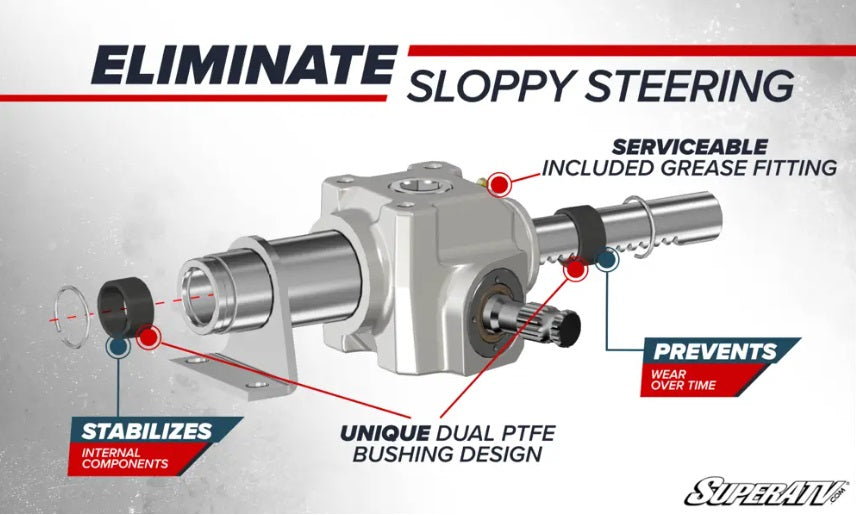

Minimizes Wear and Tear with Our Dual-Bushing Design
We use a dual PTFE bushing design to prevent the wear and tear that you’re used to. Thanks to our X24 Tech, which uses tough bushings at both ends of the rack, RackBoss 2.0 can power through bigger hits with larger tires without getting sloppy steering. You get like-new operation that lasts longer than any other General 1000 steering rack. Plus, the built-in grease fittings allow you to push out all the crud that can get in when you go hard in mud or water. It’s only possible with RackBoss 2.0.

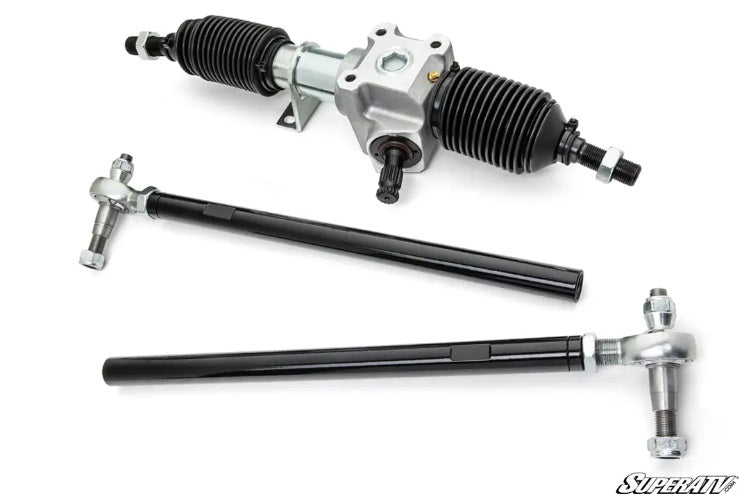

Solid Steel Bar Tie Rods

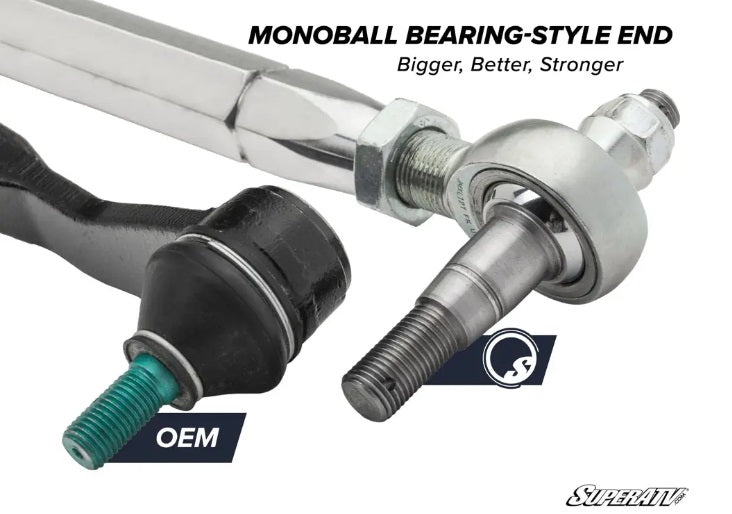

Solid steel bar tie rods give you the robust strength you need to ride through rough terrain. They’re perfect for turning big tires through slop and navigating boulder fields. The 1” diameter steel rod is paired with beefy tie rod ends—3/4” outer tie rods and rebuildable inner tie rods that use 3/4” rod threads and 16 mm rack threads. All that strength lets you get wild.
Swaged T529ube Tie Rods

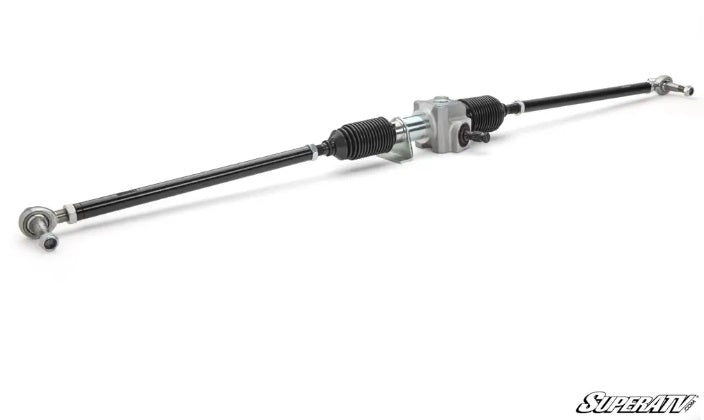

Our steel swaged tube tie rods are lightweight but strong. Our swaged design significantly improves the strength of the 7/8” diameter tubing. They feature 16 mm inner ball and sockets along with 14 mm outer tie rod ends to make sure the weak points are as strong as possible. They’re perfect for the casual rider that’s tired of their stock performance.
Looking for a More Traditional Rack?
If you don’t need all the benefits of a RackBoss 2.0, you can dial it back to our original, more traditional RackBoss 1.0. It uses the same beefy housing but doesn’t include the extra PTFE bushing. Our RackBoss 1.0 Rack and Pinion comes with steel swaged tubes that are tougher than stock and perfect for casual riders looking for an upgrade. It’s finished with our tough 14 mm inner and outer tie rod ends so you can ride harder without worry.
RackBoss 2.0 Features:
- Heavy-duty dual PTFE bushings:
- Designed with X24 Tech
- Prevents wear
- Reduces slop
- Improves overall durability
- Solid steel tie rods use:
- 3/4” outer tie rod ends
- Rebuildable inner tie rod ends that use 3/4” rod threads and 16 mm rack threads
- Swaged tube tie rods use:
- 14 mm outer tie rod ends
- Rebuildable inner tie rod ends that use 14 mm rod threads and 16 mm rack threads
- 65% larger housing than stock
- Over 50% less wear than OEM after 15,000 cycles

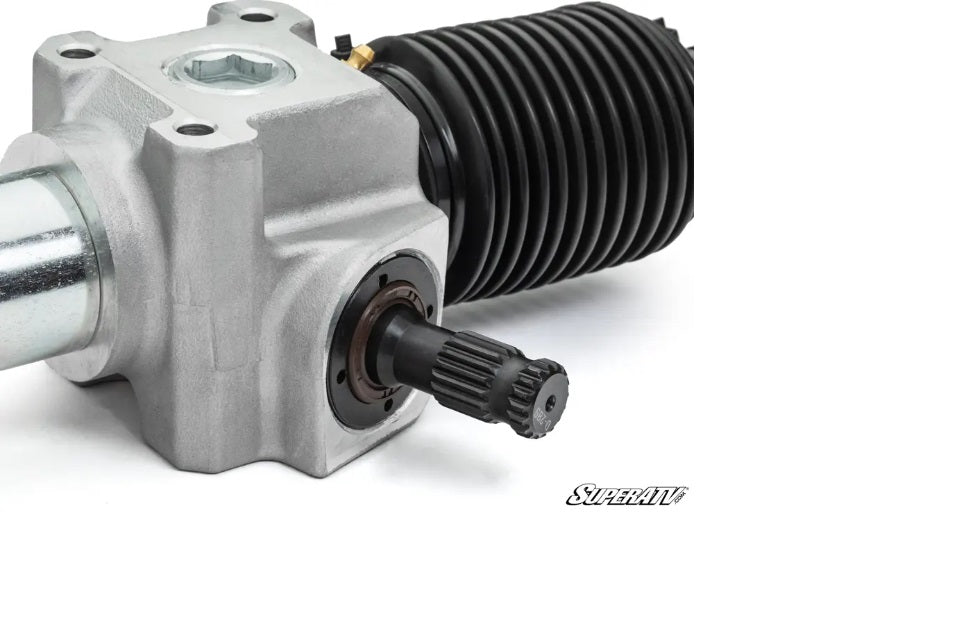

- Grease fitting for rack gears
RackBoss 1.0 Features:
- Uses a single PTFE bushing
- 65% larger housing than stock
- Less wear than stock
- Uses steel swaged tie rods
- 14 mm inner and outer tie rod ends
- Includes all hardware and instructions
FITMENT
- Polaris General : 2016+
- Polaris General 4 : 2017+
Replaces OEM Part # : 1824349 and 1823994
NOTES:
- Does not fit Polaris General XP 1000 : 2020+
- Does not fit Polaris General XP 4 1000 : 2020+
