Sold as Pair
-
DETAILS
Get Lifted and Save your Suspension

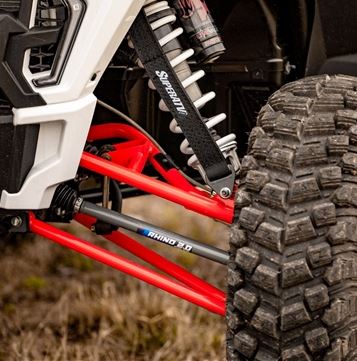

Get a SuperATV Limit Strap for your UTV so you can go big without blowing an axle. We all love getting lifted—big clearance, big tires, big toys—but not when that means blowing axles, busting shocks, and tearing up tie rods every time you get a little wild. With a limit strap, you can stop that suspension travel and save your components.
Built to be Used

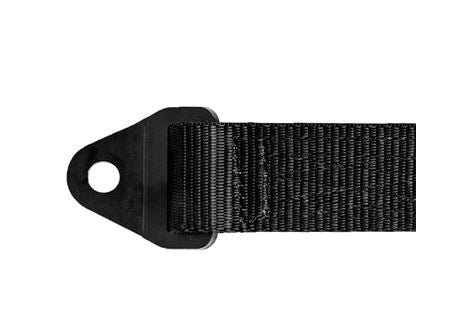

These 1.75” nylon straps are built strong enough to withstand wild riding with monster tires and heavy wheels. The nylon strap is rated to 7000 pounds then double wrapped and double stitched making it unbreakable in most circumstances. No matter how much weight you put on your suspension, these straps won’t bust. Even these are Built for Battle. - Made with 1.75-inch-wide nylon rated to 7000 pounds
- Uses chromoly steel mounts
- Saves your shocks, axles, tie rods, and components
| Recommended Limit Strap Length | |
|---|---|
| Eye to Eye Shock Length* | Recommended Limit strap |
| 14.5 | 13 |
| 15 | 13 |
| 15.5 | 14 |
| 16 | 14 |
| 16.5 | 15 |
| 17 | 15 |
| 17.5 | 16 |
| 18 | 16 |
| 18.5 | 17 |
| 19 | 17 |
| 19.5 | 18 |
| 20 | 18 |
| 20.5 | 18 |
| 21 | 19 |
| 21.5 | 19 |
| 22 | 20 |
| 22.5 | 20 |
| 23 | 21 |
| 23.5 | 21 |
| 24 | 22 |
| 24.5 | 22 |
| 25 | 23 |
| 25.5 | 23 |
| 26 | 24 |
| 26.5 | 24 |
| 27 | 25 |
| 27.5 | 25 |
| 28 | 26 |
| 28.5 | 26 |
| 29 | 27 |
| 29.5 | 27 |
| 30 | 28 |
| 30.5 | 28 |
| 31 | 29 |
| 31.5 | 29 |
| 32 | 30 |
| 32.5 | 30 |
| 33 | 30 |
| 33.5 | 31 |
| 34 | 31 |
| 34.5 | 32 |
| 35 | 32 |
| 35.5 | 33 |
| 36 | 33 |
| 36.5 | 34 |
| 37 | 34 |
| 37.5 | 35 |
| 38 | 35 |
| 38.5 | 36 |
| 39 | 36 |
| 39.5 | 37 |
| 40 | 37 |
| 40.5 | 38 |
| 41 | 38 |
| 41.5 | 38 |
*Shock length is measured from eye to eye at full extension.
NOTE: Length of limit straps may measure up to 1" shorter in relaxed state (uninstalled).
List of part numbers that are compatible with the Kimpex number :
-
Barcode :9999999988
-
Supplier number :LS23
-
Kimpex catalog number :317430
