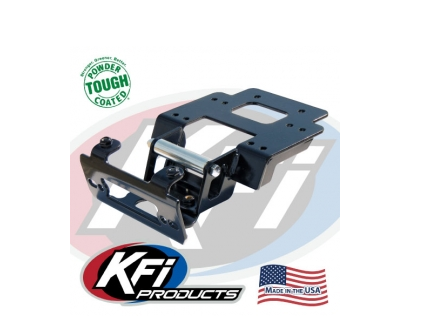

WINCH MOUNT RZR 900 11-14

KFI100765

76438563

  • Sale
  • $118.99

On Order


 RZR MODEL YEARS
900 RZR XP 2011-14
900 RZR XP 4** 2012-14

  ** = Requires the purchase of#UTV-WEK (wire extension kit) Due to location of battery on the RZR.

Mount designed to work with the following winches:

  • KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / AS-50
  • WARN:VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
  • WARN:A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
  • WARN:RT15 / RT25 / RT30 / XT15 / XT25 / XT30
  • WARN:Vantage 2000-3000lbs / Provantage 2500-3500lbs
  • RAMSEY : ATV2500 / ATV3000
  • SUPERWINCH : Terra25 / Terra35 / A3500 / LT2500 / LT3000 / LT4000ATV
  • MILE MARKER :PE2.5 / PE 3.5 / VMX2.5 / PE3500
  • CYCLE COUNTRY :Work Power  2500 / Powermax 2500 and 3500
  • BADLAND: 2-Hole Winches (Click Here for Details)
    • Will require the additional purchase of the Converter Mount #100480
  • BADLAND: Standard Winches (Click Here for Details)
  • CHAMPION : 2-Hole Winches (Click Here for Details)
    • Will require the additional purchase of the Converter Mount #100480
  • CHAMPION : Standard Winches (Click Here for Details)
  • KEEPER CORP. TRAKKER:KT2500 / KT3000 / KT2500C / KT3000C
  • KEEPER CORP. TRAKKER: KT2000
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
    • Will require the additional purchase of the Converter Mount #100480
  • SMITTYBILT :XRC 2.0
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
    • Will require the additional purchase of the Converter Mount #100480
  • SMITTYBILT :XRC 3.0 / XRC 4.0
  • XGEAR:  X3000 / X4000
    • 4-Hole Standard (3.00" x 4.875" bolt pattern)
  • VENOM: 2000 / 2500 / 3000 / 3500 (Hardcore Series)
    • All with 3.00" x 4.875" bolt pattern mount-up.
  • VENOM: 4500 / 5000 (Hardcore Series) Will require the additional #101065 Spacer Plate
    • All with 3.00" x 4.875" bolt pattern mount-up.
  • QUADBOSS: RP25 / RP35
  • Possibly many others with the below standard mounting patterns, call to confirm.
    • 4-Hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern)
  • 2-HOLE MOUNTED WINCHES WITH A 3.10" BOLT PATTERN:
    • All 2-Hole mounted winches will require the additional purchase of the Converter Mount #100480
    • Requires roller fairlead with a 4.875" bolt pattern; available if needed #ATV-RF.
  • This mount has the Wide Bolt Pattern built in but is not recommended due to cable rub on the mount.
    • 4-Hole (3.00" x 6.60" bolt pattern with rollers that are 6.00" bolt pattern)



Specifications:

  • ​​​​​​​100% MADE IN USA.
  • Constructed of 3/16" steel.
  • Unlike all other mount competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep.
  • Powder coated black for supreme durability.
  • Complete installation instructions included.
  • All mounting hardware included.
  • Satisfaction guaranteed.
  • Roller fairlead and winch not included.
