2015-2021 Polaris RZR S 900
2015-2021 Polaris RZR 900 XC
2016-2021 Polaris RZR S 1000o,

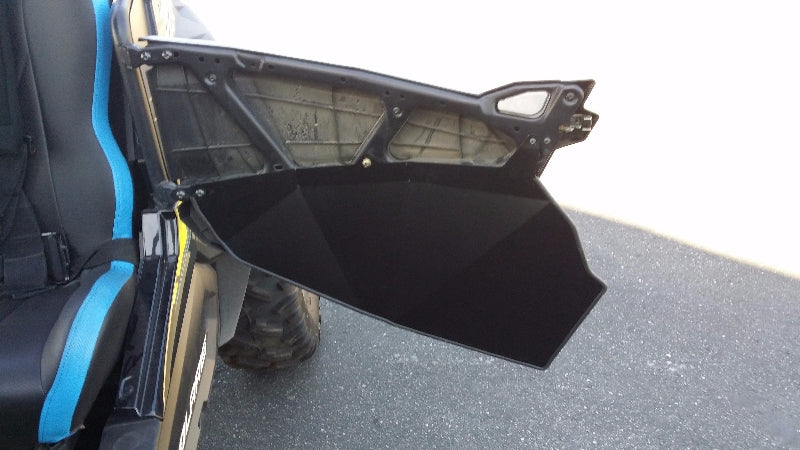

Set of two, (driver's and passenger's sides) powder coated aluminum lower door inserts for your 2 door 2015 and newer RZR S 900, RZR S 1000, or RZR 900 XC. Plus includes the two small panels near the bed. New improved design has a fold over hemmed edge for greater strength and rigidity and a more finished look. Our newly redesigned door inserts are now punch cut instead of plasma cut for a more precise fit and cleaner edges. More quality for the same low price! Made in USA!
Also includes the 2 panels for the small triangles near the bed. The 900 takes different small triangles than the 1000, we include both styles in the box. Comes with all hardware and everything you need for a fast, easy, install. No drilling or modifying your stock doors required, these simply bolt on.
NOTE: If you have the Ride Command Speakers in your doors, these inserts will work, however you will have to drill a few pass through holes in them for the speaker bolts to pass though. You might need to source longer bolts in some cases.
New design does not require removing your stock plastic door skins, resulting in an easy 20 minute install! The door inserts simply bolt onto the factory torx head bolts, then a nut clip is inserted in the middle to give an attachment point for the center. No exposed bolt heads on the outside. It doesn't get any easier! This new design is also stronger and more rigid than before and keeps it simple and functional. The new fold over hemmed edge sets our inserts apart from other copycats, we're the only ones that make them this way, and it's way stronger and more finished.
The least expensive way on the planet to seal in the cab of your RZR, but don't let our low price fool you, these are super high quality computer bent aluminum panels, powder coated a slightly matte black to more closely resemble the black plastic of the stock doors and exactly match the roll cage tubing. Our competitors not only charge hundreds more for these inserts, but they powder coat them regular black which looks glossy and doesn't match the stock look.
2-Door RZR 900-S / 1000 /Turbo Door Inserts
Hardware Pack Contents:
1. 2- Small Triangle Panel Z-Brackets
2. 2- Nut Insert Clips
3. 4- Allen Bolts with Washers and Nuts
4. 2- Gold Bolts with Lock Washers & Washers
1. Remove factory torx head bolts from RED ARROWS in picture below. Note the front torx location.
2. Clip Nut Insert (#2 in picture above) to center door frame at YELLOW ARROW, aligning with center hole in insert.
3. Reinstall factory torx bolts to attach insert to door at RED ARROWS. Use the supplied gold bolt and washers (#4 in picture above) to secure insert to nut clip at Yellow Arrow.
4. TIP: For final adjustment and centering: Loosen the 4 torx bolts at GREEN ARROWS and also loosen the two torx bolts at the door latch striker “D” (not shown in pics, this is up front on the body plastic). When all 6 of these torx bolts are loose, door can be latched closed and moved around for perfect fit. Hold in place, then tighten.
5. Identify the small triangular panels using picture above right. If you have the wrong triangles please call or email.
6. Attach the Small Panel Z-Brackets to small triangles using allen bolts and hardware as shown in picture above.
7. Clip small triangular panel in position, remove and reinstall roll cage bolt to secure.
